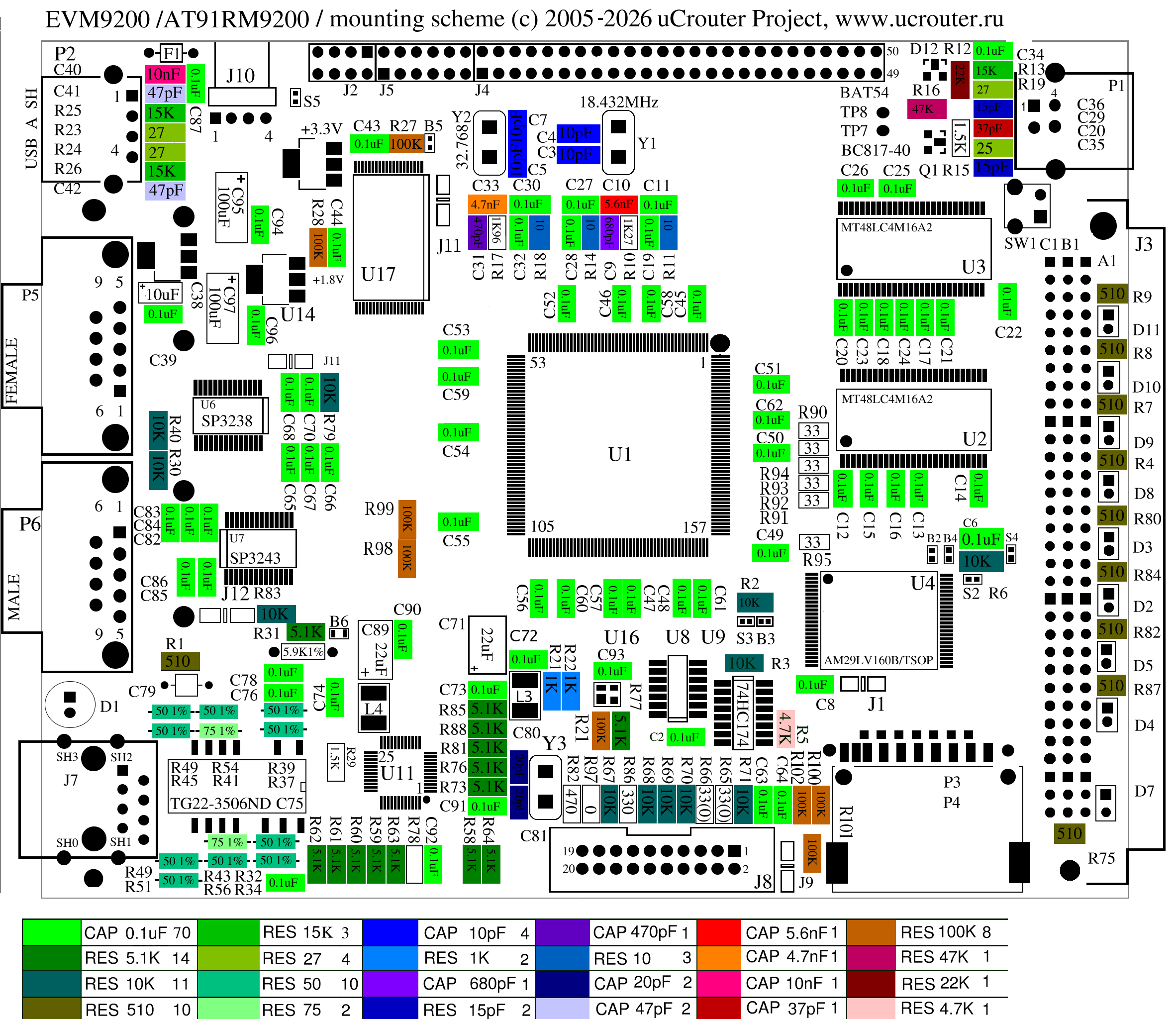

Features
- Atmel Corporation controller AT91RM9200
- 4 MBytes flash (4M x 8)
- SPI flash (optional)
- 16 MBytes SDRAM (4M x 32)
- Two serial async interfaces (RS-232, DB-9)
- 10/100 Ethernet interface (RJ-45)
- 10 LEDs (5 Ethernet and 5 software controlled)
- Connector (96 pins) for extension board (optional)
- Connector (70 pins) for extension board
- USB host, USB device
- Connector MMC
- Reset button
- JTAG header (20 pins) for debuger
- Dimensions: 154 mm x 122 mm
- Supply voltage: 5V ± 10% DC
|
Short Description
EVM9200 is suitable for evaluating systems, based on
Atmel A91RM9200 controller.
Documentation
Software
|

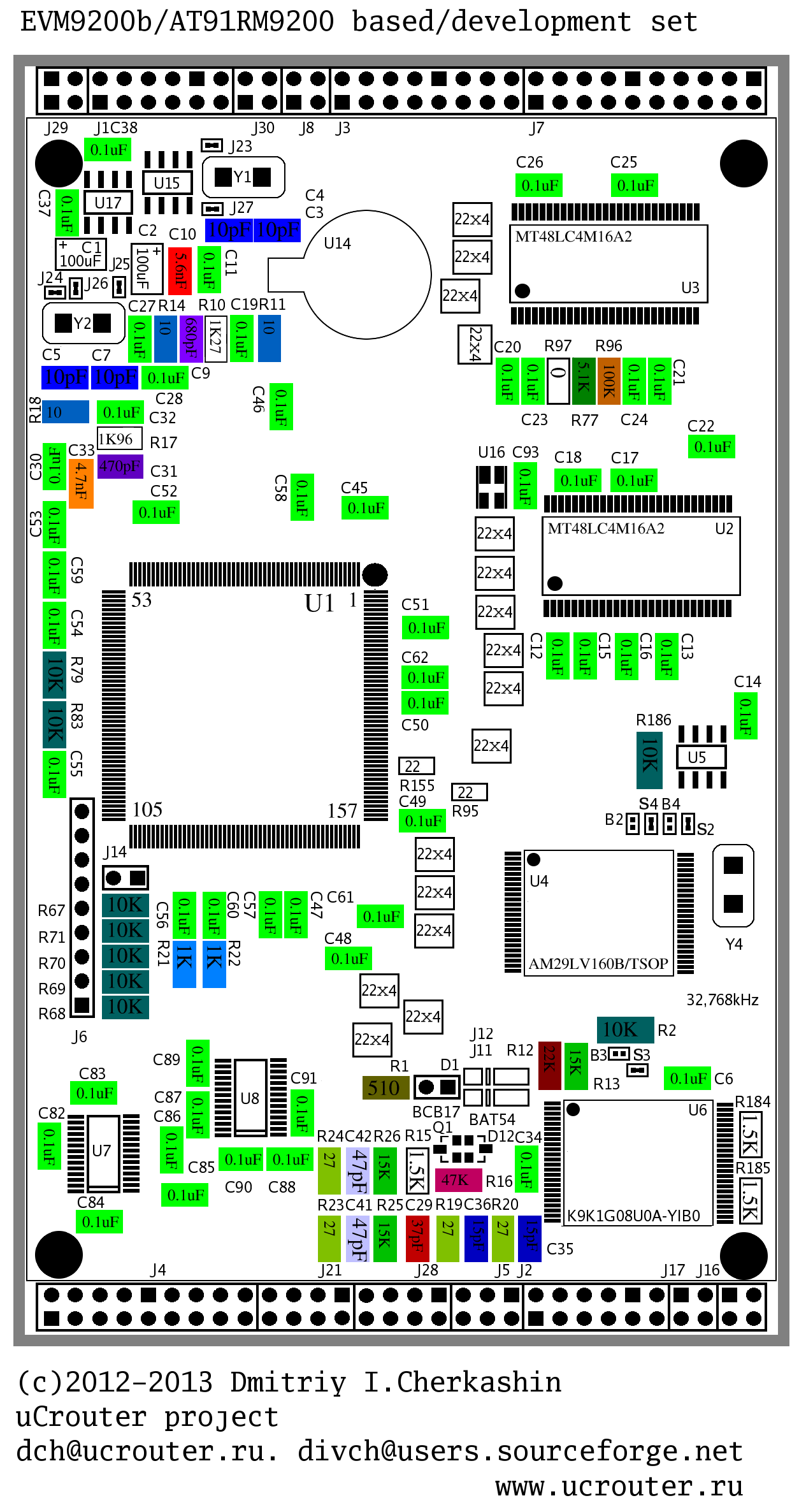

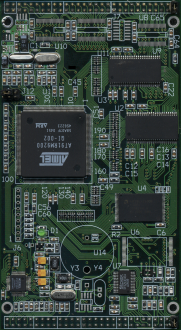

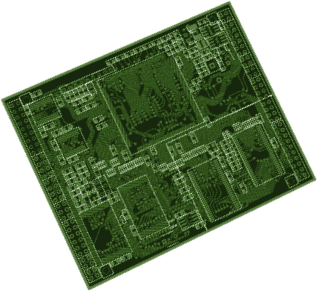

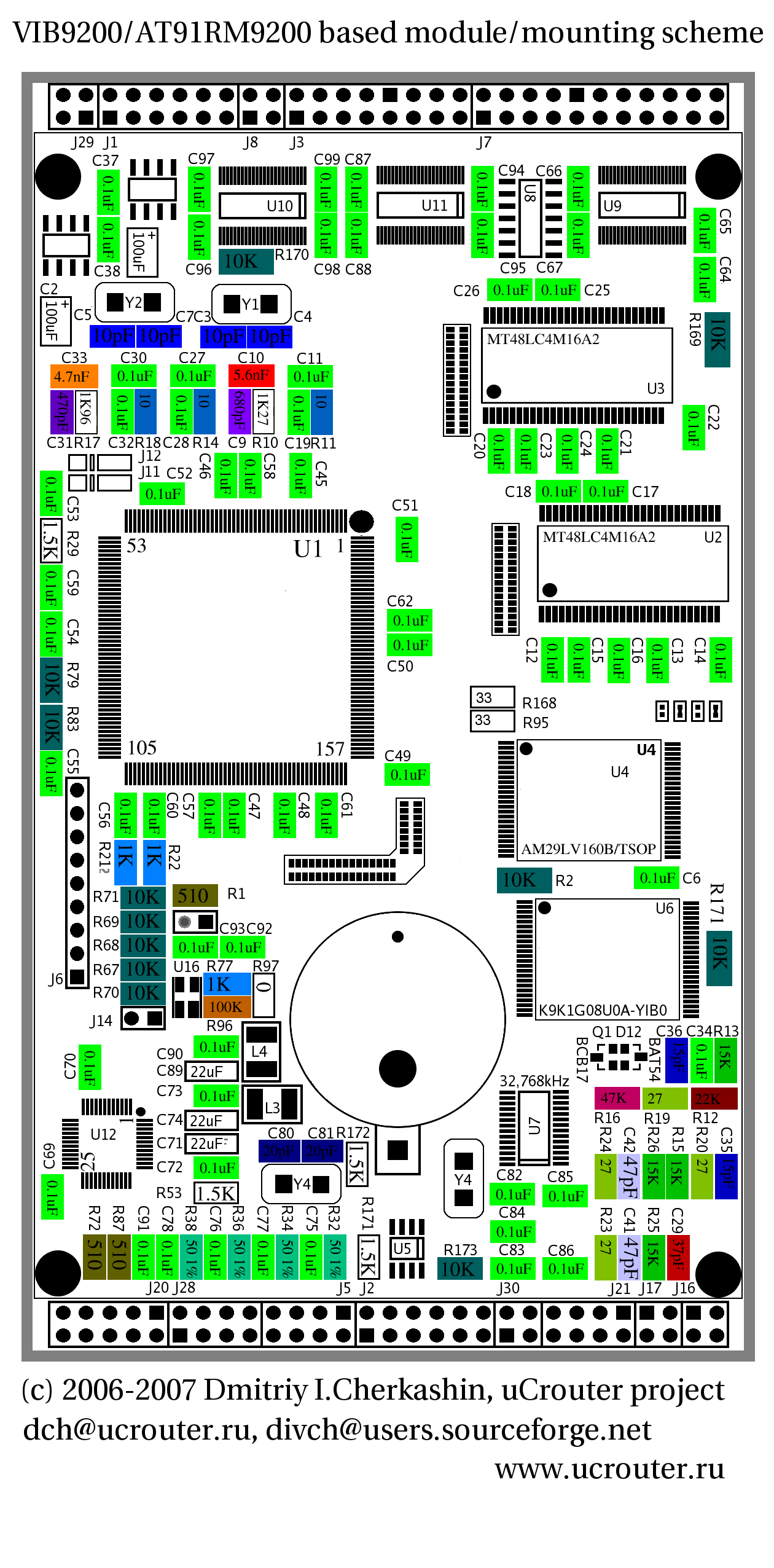

Features
- Atmel Corporation controller AT91RM9200
- 4 MBytes flash, 128 NAND flash
- 32 MBytes SDRAM
- serial async interface (RS-232, DB-9)
- USB host, USB device
- 10/100 Ethernet interface
- 1 LED, RTC, litium battery
- JTAG header (9 pins) for debuger
- Dimensions: 140 mm x 78 mm
- Supply voltage: 5V ± 10% DC
|
october 2008
|
Features
- LH79525 (Sharp)
- 4 MBytes flash
- 16 MBytes SDRAM
- Two serial async interfaces (RS-232, DB-9)
- 10/100 Ethernet interface (RJ-45)
- 10 LEDs (5 Ethernet and 5 software controlled)
- Connector (64 pins) for extension board
- JTAG header (20 pins) for debuger
- USB device
- LCD connector
- Reset button
- Dimensions: 154 mm x 122 mm
- Supply voltage: 5V ± 10% DC
|
|

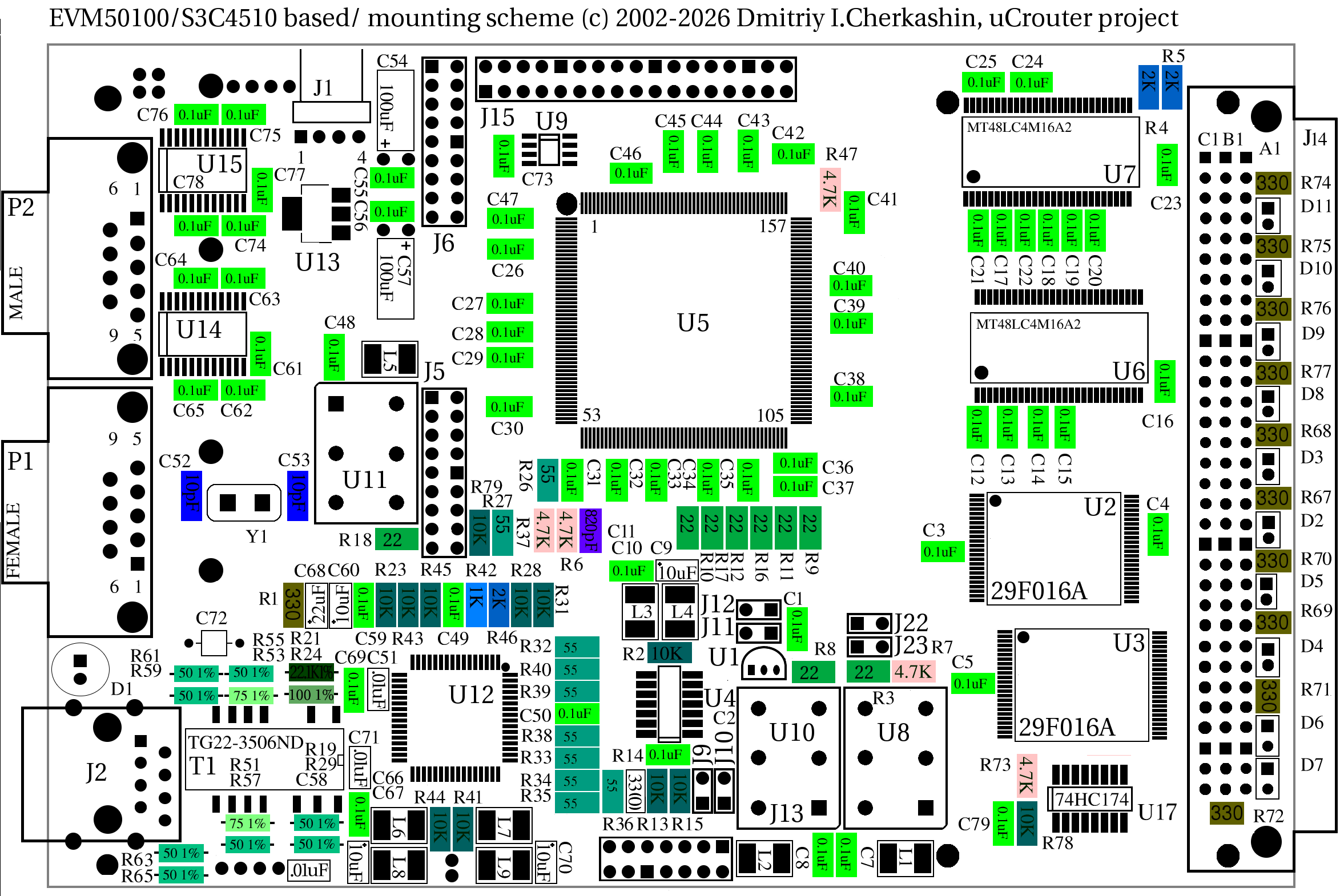

Features
- Samsung S3C4510 (KS32C50100) controller
- 2 or 4 MBytes flash (2M x 8 or 4M x 8)
- 16 MBytes SDRAM (4M x 32)
- 50 MHz system clock
- Two serial async interfaces (RS-232, DB-9)
- 10/100 Ethernet interface (RJ-45)
- Two connectors for interface boards
- 11 LEDs (6 Ethernet and 5 software controlled)
- Connector (96 pins) for extension board
- JTAG header (14 pins) for debuger
- Dimensions: 154 mm x 102 mm
- Supply voltage: 5V ± 10% DC
- Consumption current: 800 mA (max)
|
Short Description
EVM50100 is suitable for evaluating systems, based on
Samsungs S3C4510 (KS32C50100)
embedded network controller. All needed S3C4510’s pins are attached
to connectors and so extension boards can be connected to the
EVM50100.
Documentation
Software
|

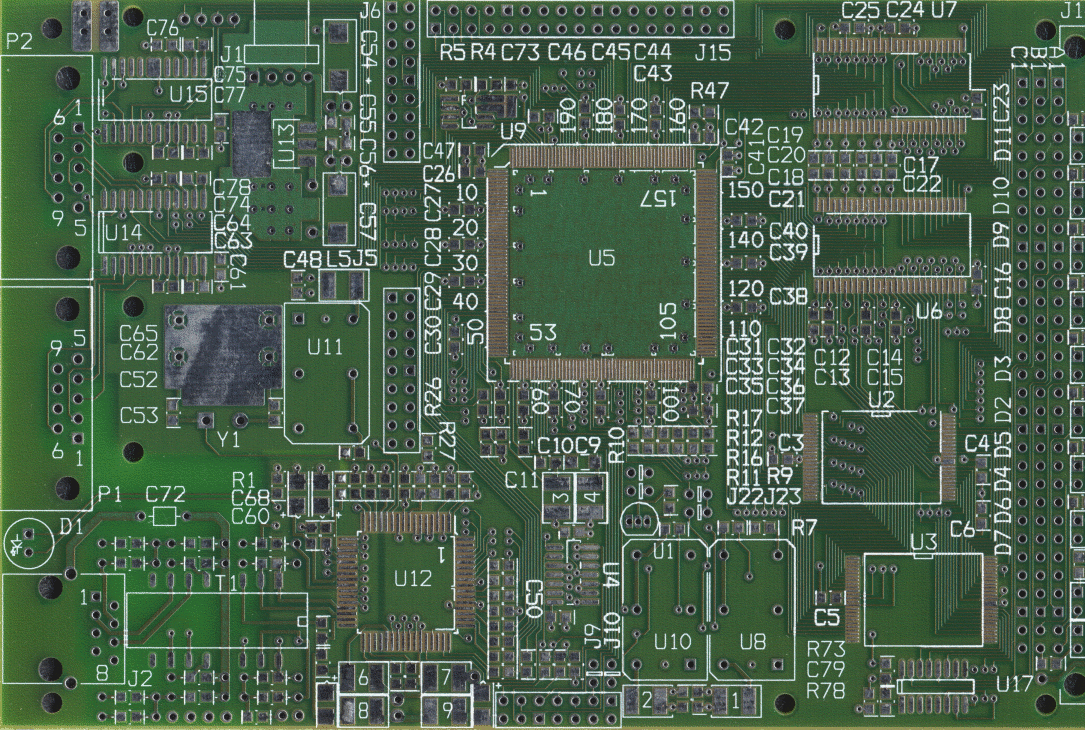

EVM50100 top side
|

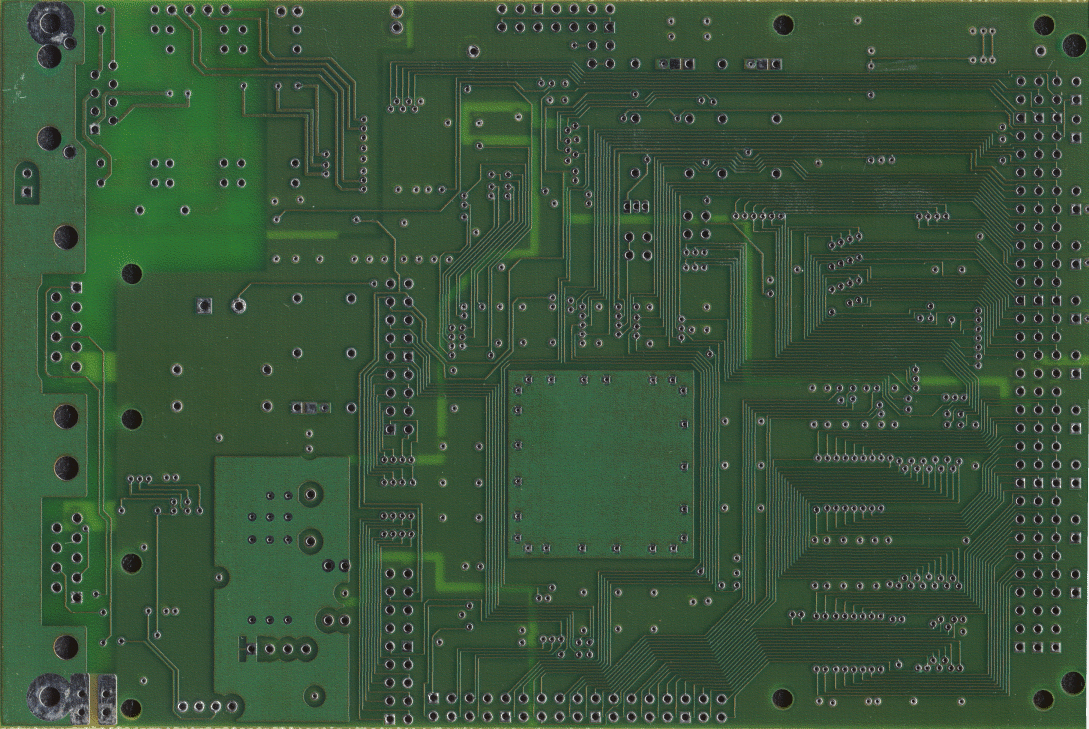

EVM50100 bottom side
|
|
|
october 2008
|
|

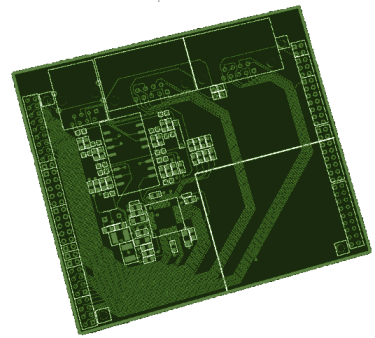

Features
- Samsung S3C4510/S34530
- 2/4 MBytes flash
- 16 MBytes SDRAM
- 50 MHz system clock
- Two serial async interfaces (RS-232, not standart connector)
- 1 LED
- JTAG header (9 pin)
- Supply voltage: 5V ± 10% DC
|
Short Description
GPIO pins, MII, data bus, RS232 pins connected to two headers along short sides PCB.
october 2008
|
|
Features
- RS232 DB9M, DB9F connector
- Ethernet RJ45 connector
- Ethernet PHY RTL8201BL
|
Documentation
october 2008
|
|

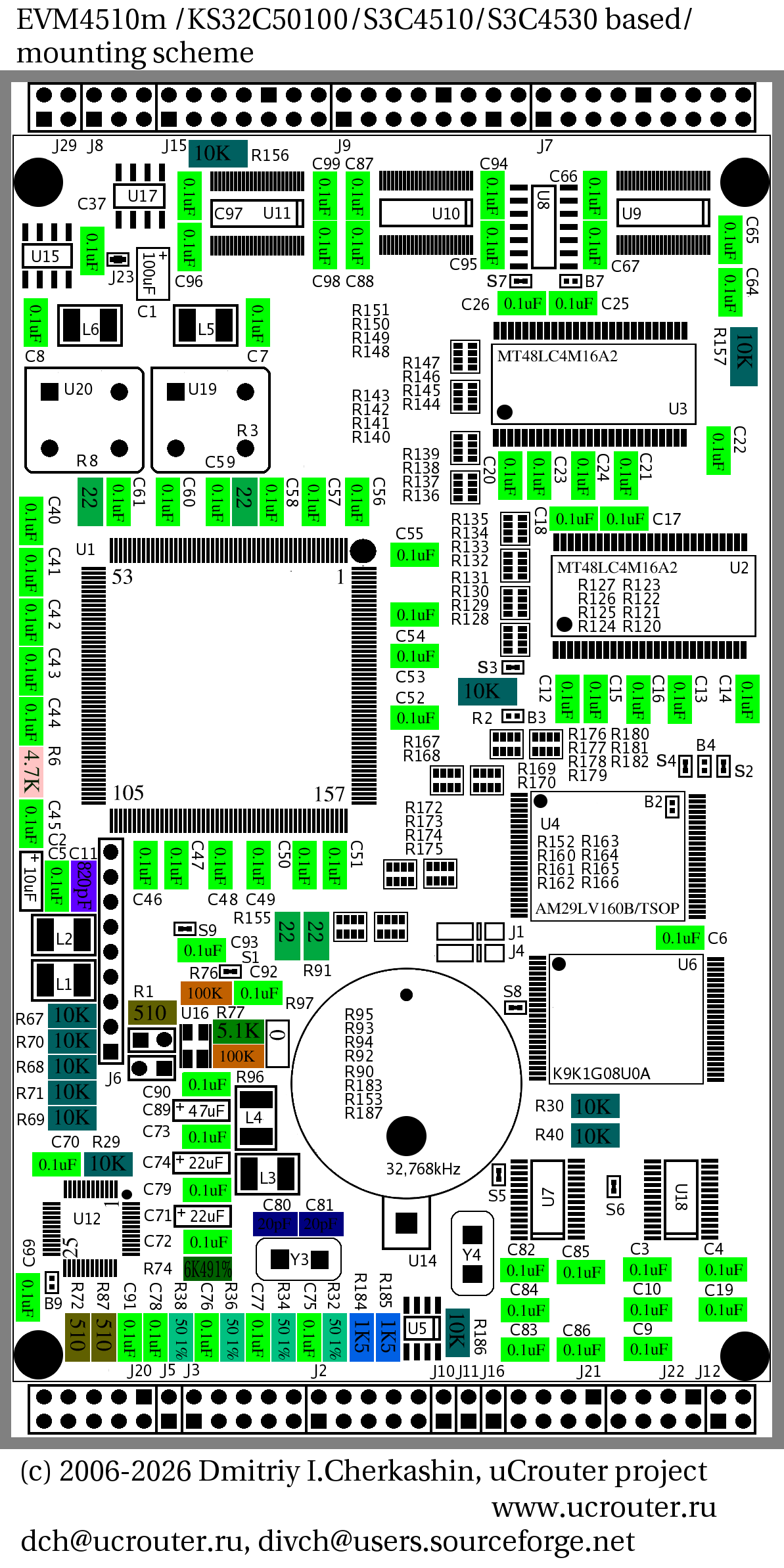

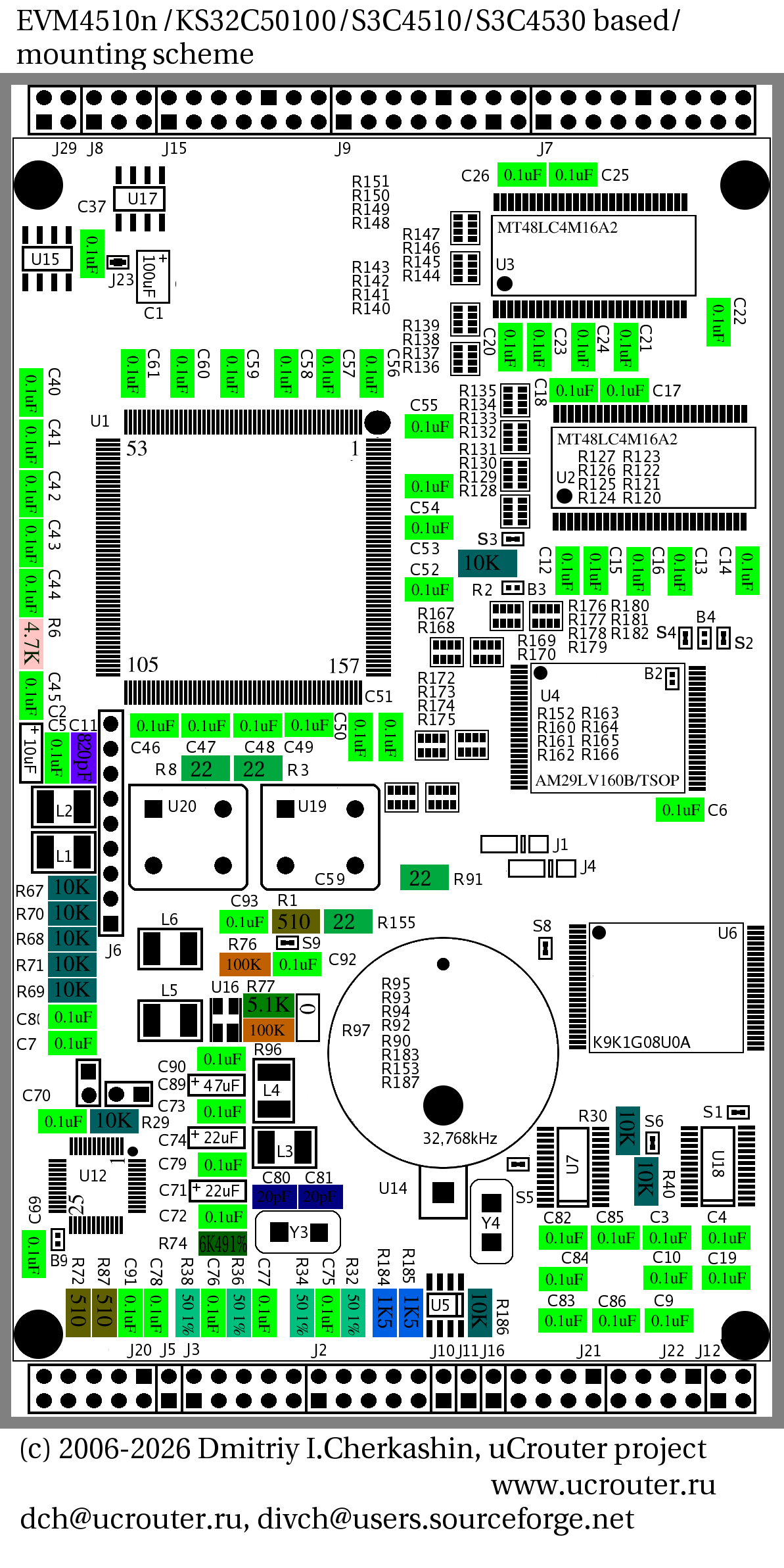

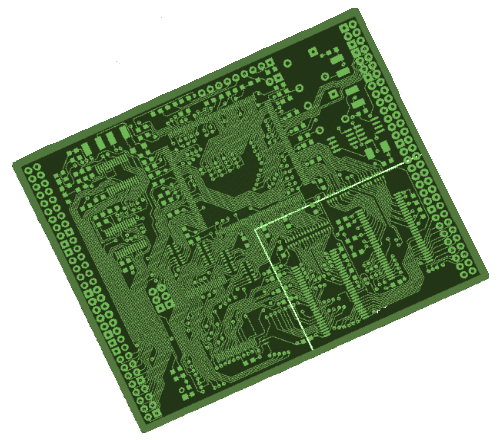

Features
- Samsung S34530
- 4 MBytes flash, 128 NAND flash, 16 MBytes SDRAM
- serial async interface (RS-232), USB host, USB device
- 10/100 Ethernet interface
- 1 LED, RTC, litium battery
- JTAG header (9 pins) for debuger
- Dimensions: 140 mm x 78 mm
- Supply voltage: 5V ± 10% DC
|
october 2008
|
|

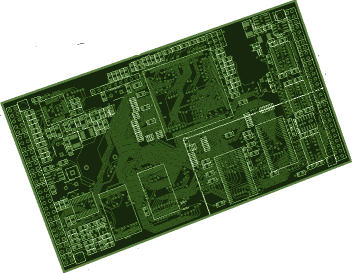

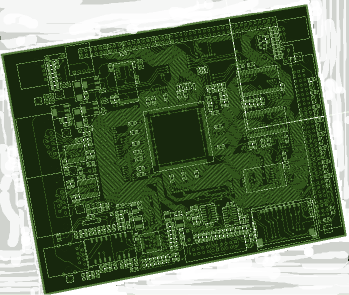

Features
- AT91SAM9260
- 4 MBytes flash (4M x 8)
- SPI flash (optional)
- 32 MBytes SDRAM
- Two serial async interfaces (RS-232, DB-9)
- 10/100 Ethernet interface (RJ-45)
- 10 LEDs (5 Ethernet and 5 software controlled)
- USB host, USB device
- Connector MMC
- Reset button
- JTAG header (20 pins) for debuger
- Dimensions: 154 mm x 122 mm
- Supply voltage: 5V ± 10% DC
|
october 2008
|
|

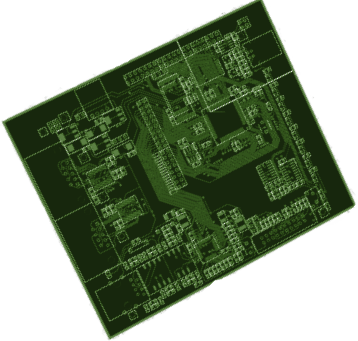

Features
- AT91SAM7X
- SPI flash (optional)
- Two serial async interfaces (RS-232, DB-9)
- 10/100 Ethernet interface (RJ-45)
- 10 LEDs (5 Ethernet and 5 software controlled)
- USB host
- Reset button
- JTAG header (20 pins) for debuger
- Dimensions: 154 mm x 122 mm
- Supply voltage: 5V ± 10% DC
|
| |
|
