Development set EVM9200

EVM9200

Features

  • AT91RM9200, Atmel Corporation
  • 2/4 Mbytes flash
  • 4/8 Mbytes SPI flash, optional
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • Two serial interfaces, RS-232, DB-9
  • 100/10 Ethernet interface, RJ-45
  • 10 LEDs, 5 Ethernet and 5 software controlled
  • Connector, 96 pins for extension, optional
  • Connector, 70 pins for extension
  • USB host, USB device
  • Connector MMC
  • Reset button
  • JTAG header, 20 pins
  • Dimensions: 154 mm x 122 mm
  • Supply voltage: 5V ± 10% DC

Short Description

EVM9200 is suitable for evaluating systems, based on Atmel A91RM9200.

Documentation

Software

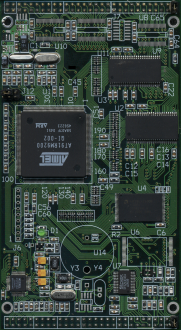

EVM9200m Development set

PCB files for manufactoring

Features

  • AT91RM9200, Atmel Corporation
  • 4 Mbytes flash, 128 NAND flash
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • serial interface, RS-232, non standart connector
  • USB host, USB device, non standart connector
  • 100/10 Ethernet interface
  • 1 LED, RTC, litium battery
  • JTAG header, 9 pins
  • Dimensions: 140 mm x 78 mm
  • Supply voltage: 5V ± 10% DC

EVM9200b Development set

PCB files for manufactoring

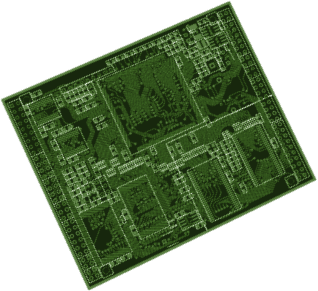

EVM9200b

Features

  • AT91RM9200, Atmel Corporation
  • 4 Mbytes flash, 128 NAND flash
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • two serial interface, RS-232, non standart connector
  • USB host, USB device, non standart connector
  • MII interface
  • 1 LED, RTC, litium battery
  • JTAG header, 9 pins
  • Dimensions: 100 mm x 78 mm
  • Supply voltage: 5V ± 10% DC

Documentation

EVM9200s, EVM9200b backplain

is under developing

EVM3400 Development set

PCB files for manufactoring

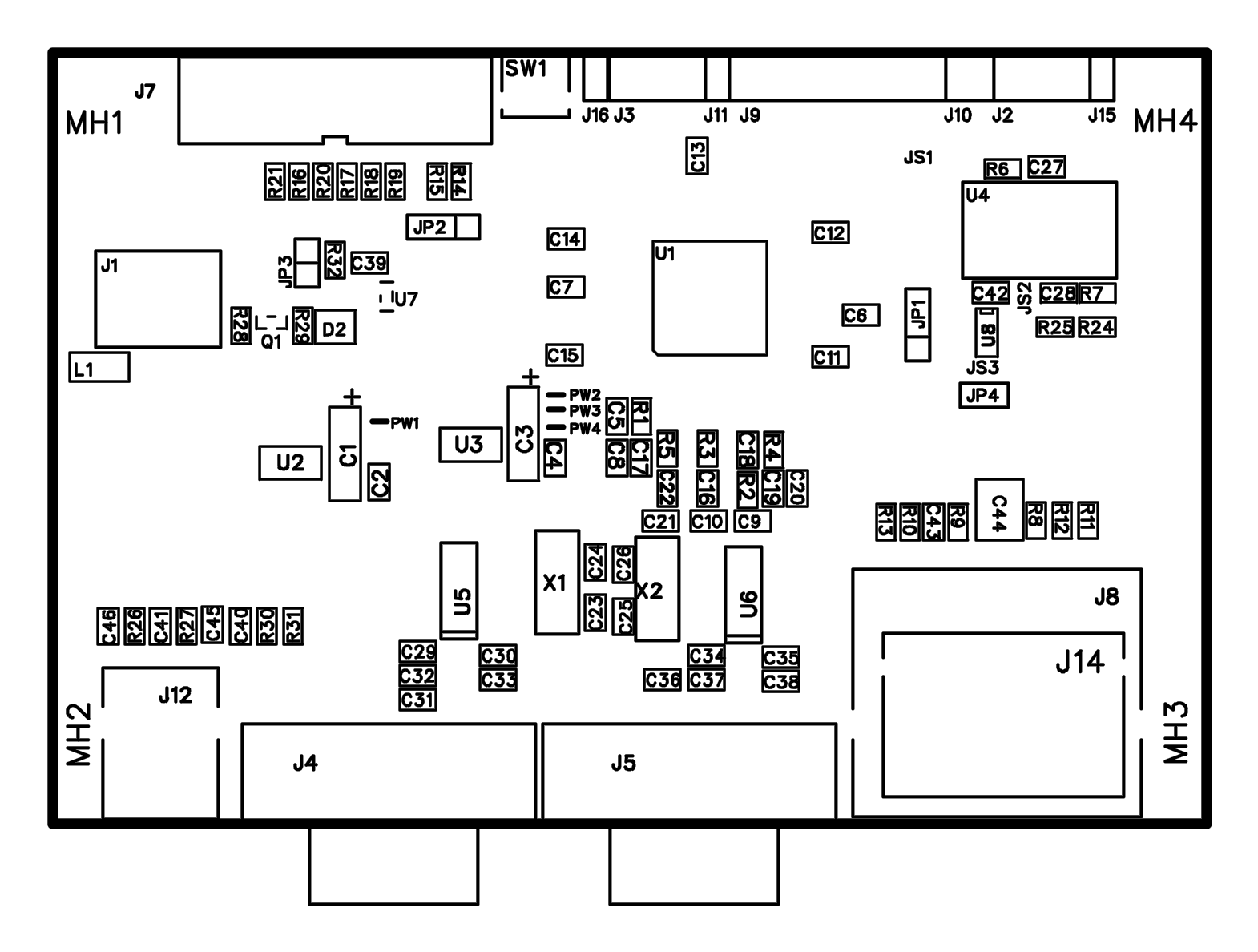

EVM3400_ast

Features

  • AT91RM3400 Atmel Corporation
  • 8 Mbytes SPI flash
  • EEPROM AT24C512
  • two serial interface, RS-232, RS-232, DB-9 (DTE)
  • USB device
  • Connector MMC
  • Reset button
  • JTAG header, 20 pins
  • Dimensions: 122 mm x 81 mm
  • Supply voltage: 5V ± 10% DC

Documentation

EVM9260, Development set

manufactoring time month

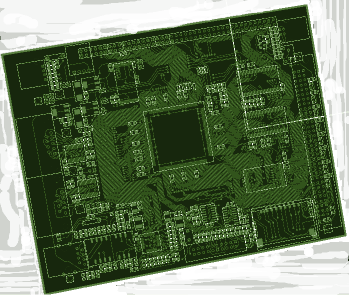

EVM9260

Features

  • AT91SAM9260, Atmel Corporation
  • 4 Mbytes flash
  • 4/8 Mbytes SPI flash, optional
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • Two serial interfaces, RS-232, DB-9
  • 100/10 Ethernet interface, RJ-45
  • 10 LEDs, 5 Ethernet and 5 software controlled
  • USB host, USB device
  • Connector MMC
  • Reset button
  • JTAG header, 20 pins
  • Dimensions: 154 mm x 122 mm
  • Supply voltage: 5V ± 10% DC

Documentation

EVM9260m, Development set

PCB files for manufactoring

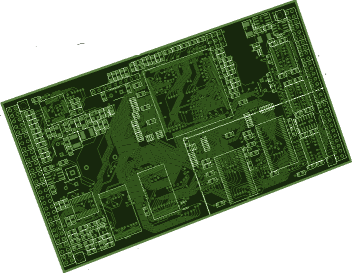

EVM9260m

Features

  • AT91SAM9260, Atmel Corporation
  • 4 Mbytes flash, 128 NAND flash
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • serial interface, RS-232, non standart connector
  • 100/10 Ethernet interface, RJ-45
  • 1 LED, RTC, litium battery
  • Reset button
  • JTAG header, 9 pins
  • Dimensions: 140 mm x 78 mm
  • Supply voltage: 5V ± 10% DC

Documentation

EVMSAM7X Development set

manufactoring time month

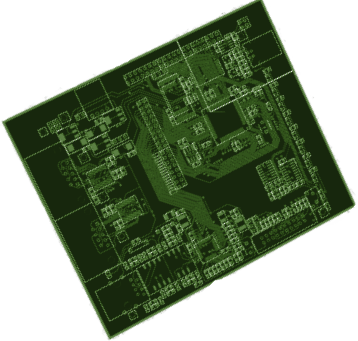

evmsam7x

Features

  • AT91SAM7X, Atmel Corporation
  • 4/8 Mbytes SPI flash
  • Two serial interfaces, RS-232, DB-9
  • 100/10 Ethernet interface, RJ-45
  • 10 LEDs, 5 Ethernet and 5 software controlled
  • USB host
  • Reset button
  • JTAG header, 20 pins
  • Dimensions: 154 mm x 122 mm
  • Supply voltage: 5V ± 10% DC

Documentation

Development set EVM79525

manufactoring time month

EVM79525

Features

  • LH79525, Sharp
  • 4 Mbytes flash
  • 16 Mbytes SDRAM, 8M x 16
  • Two serial interfaces, RS-232, DB-9
  • 100/10 Ethernet interface, RJ-45
  • 10 LEDs, 5 Ethernet and 5 software controlled
  • Connector, 64 pins for extension
  • JTAG header, 20 pins
  • USB device
  • LCD connector
  • Reset button
  • Dimensions: 154 mm x 122 mm
  • Supply voltage: 5V ± 10% DC

Documentation

Development set EVM50100

EVM50100

Features

  • S3C4510 (KS32C50100)/S3C4530 Samsung
  • 2 or 4 Mbytes flash, 2M x 8 or 4M x 8
  • 16 Mbytes SDRAM, 4M x 32
  • 50 MHz system clock
  • Two serial interfaces, RS-232, DB-9
  • 100/10 Ethernet interface, RJ-45
  • Two connectors for interface PCB
  • 11 LEDs, 6 Ethernet and 5 software controlled
  • 34 pins connector for extension PCB
  • 96 pins connector for extension PCB, optional
  • JTAG header, 14 pins
  • Dimensions: 154 mm x 102 mm
  • Supply voltage: 5V ± 10% DC
  • Consumption current: 800 mA, max

Short Description

EVM50100 is suitable for evaluating systems, based on Samsungs S3C4510 (KS32C50100)/S3C4530. All needed S3C4510s pins are attached to connectors and so extension PCB can be connected to the EVM50100.

Documentation

Software

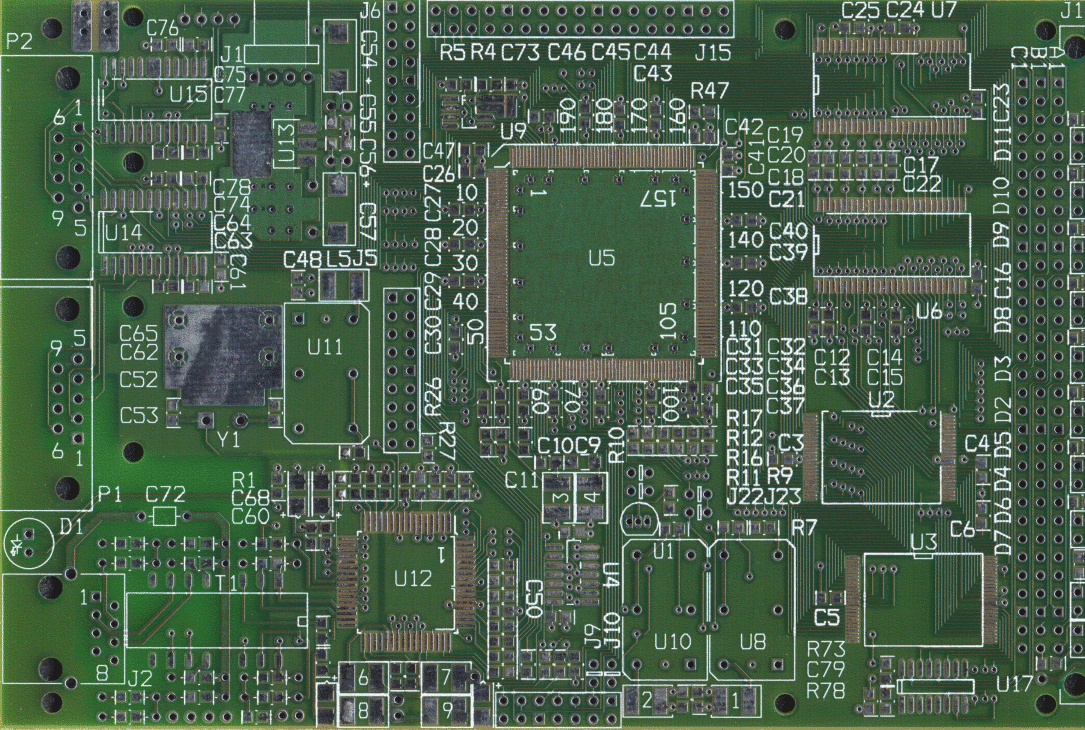

EVM50100 top side

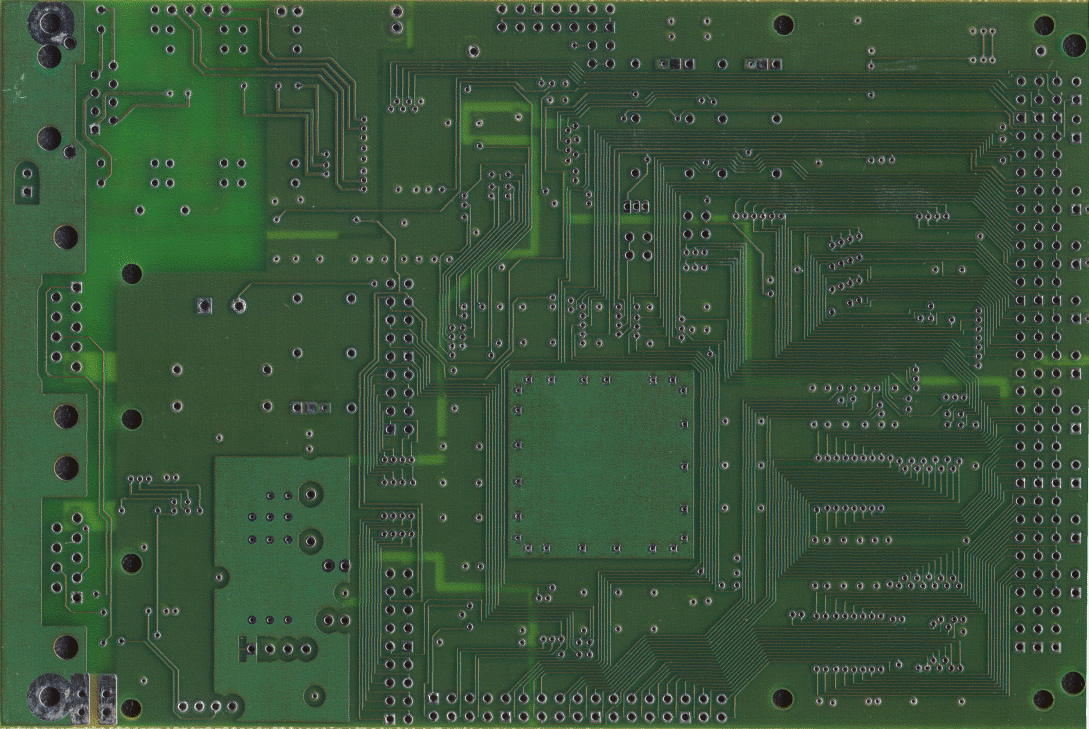

EVM50100 bottom side

EVM50100TOP

EVM50100 extension

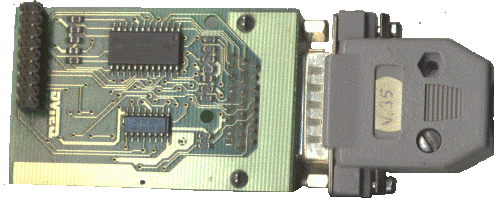

EVM50100 S3C4510/S3C4530 HDLC extension,
RS232/V.35 - cable depended

EVM4510b Development set

PCB files for manufactoring

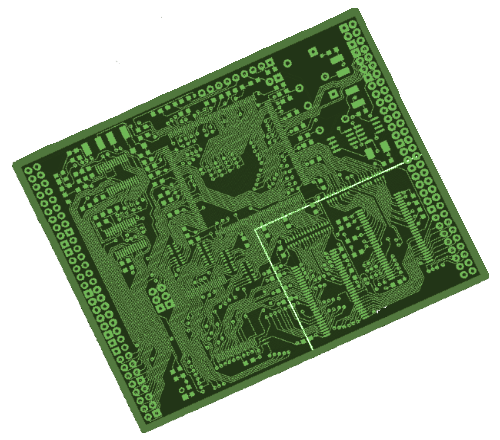

EVM4530b

Features

  • Samsung S3C4510 (KS32C50100)/S3C4530
  • 2/4 Mbytes flash
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • 50 MHz system clock
  • Two serial interfaces, RS-232, not standart connector
  • 1 LED
  • JTAG header, 9 pin
  • Supply voltage: 5V ± 10% DC

Short Description

GPIO pins, MII, data bus, RS232 pins connected to two headers along short sides PCB.

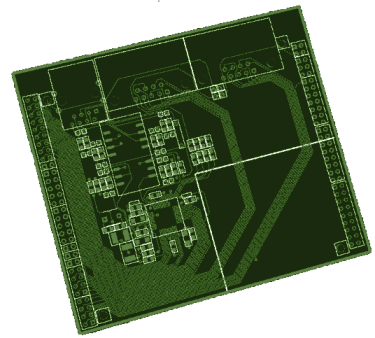

EVM4510s, EVM4510b backplain

PCB files for manufactoring

EVM4510n

Features

  • RS232 DB9M, DB9F connector
  • Ethernet RJ45 connector
  • Ethernet PHY RTL8201BL

Documentation

EVM4510m Development set & EVM4510n Development set

PCB files for manufactoring

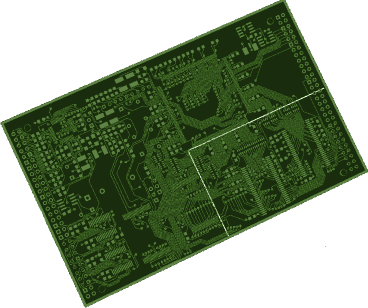

EVM4510n

Features

  • S3C4510 (KS32C50100)/S3C4530 Samsung
  • 2/4 Mbytes flash, 128 NAND flash
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • two serial interface, RS-232, not standart connector
  • 100/10 Ethernet interface
  • 1 LED, RTC, litium battery
  • JTAG header, 9 pins
  • Dimensions: EVM4510m 140mm x 78mm, EVM4510n 120 x 78 , EVM4510n under revision
  • Supply voltage: 5V ± 10% DC

Documentation

EVM8695 Development set

manufactoring time month

Features

  • KS8695 Micrel
  • 2/4 Mbytes flash
  • 16/32 Mbytes SDRAM, 4/8M x 32
  • two serial interface, RS-232, DB-9
  • 5 (five) 100/10 Ethernet interface, RJ45
  • JTAG header, 20 pins
  • Dimensions: EVM8695 154mm x 122mm
  • Supply voltage: 5V ± 10% DC
